WingPV
Lightweight, aviation-grade photovoltaic laminates for wings & UAVs
Thin, flexible laminates engineered for aviation: high efficiency cells, encapsulated for durability and minimal added weight. We supply standard and custom-fit laminates to match any wing footprint.
Advantages
Lightweight - Designed to keep drag and mass minimal.
Durable - Exposed to vibration, UV and temperature cycling.
Seamless Integration - Cut-to-shape to match wing geometry and attachment points.
Standard WingPV Laminates

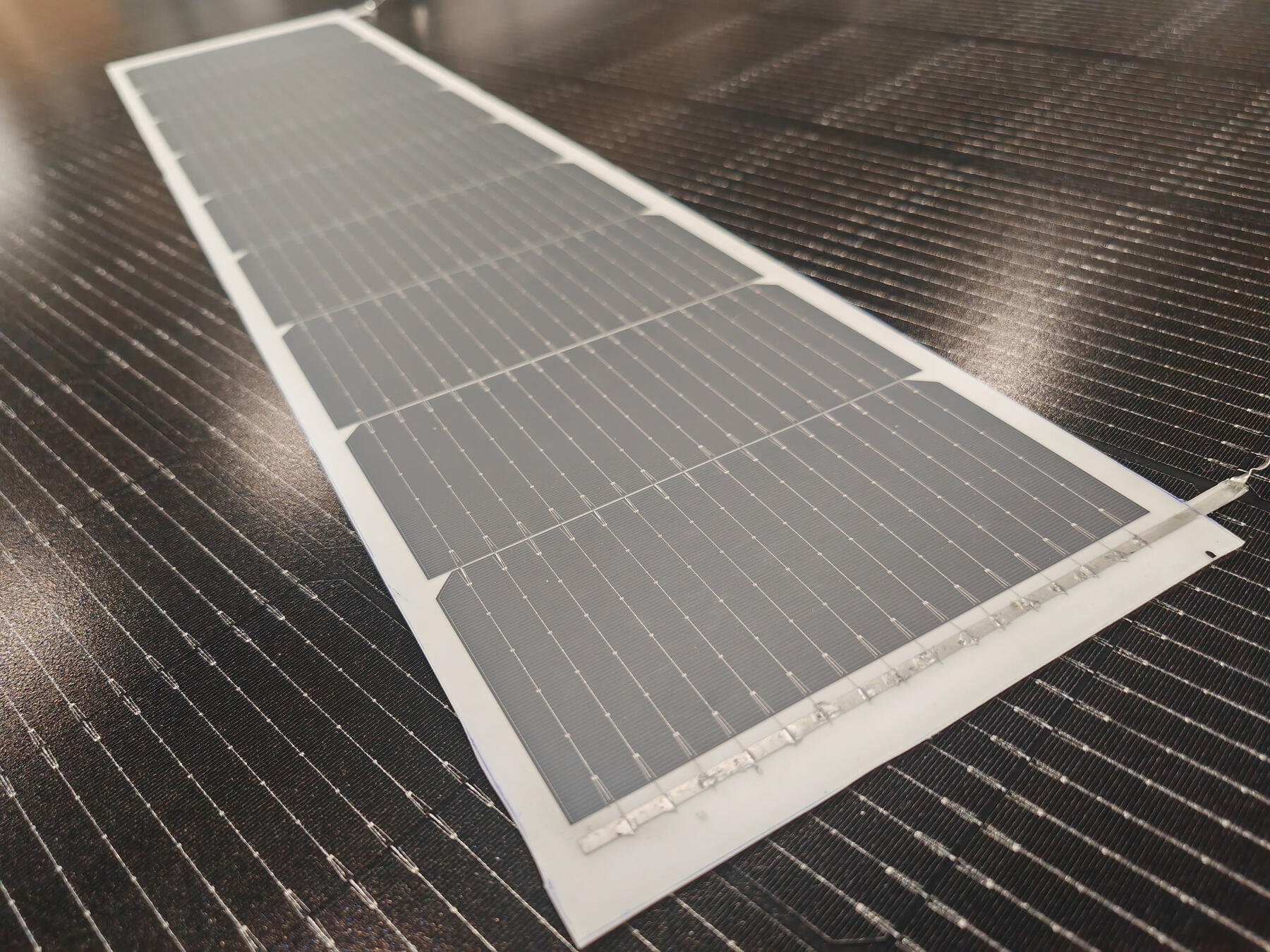

Standardized 10-half-cell photovoltaic laminates available for testing and evaluation.
| Paramter | Units | Value | Tolerance |
|---|---|---|---|
| Maximum Power Output | W | 48 | ±2 |
| Maximum Power Point Voltage | V | 6.0 | ±0,5 |
| Maximum Power Point Current | A | 7,4 | ±0,5 |
| Open Circuit Voltage | V | 8.0 | ±0,5 |
| Short Circuit Current | A | 7,8 | ±0,5 |
| Weight | g | 458 | ±20 |
| Power-to-Weight Ratio | W/kg | 125 | ±5 |
| Power-per-Surface | W/m | 216 | ±20 |

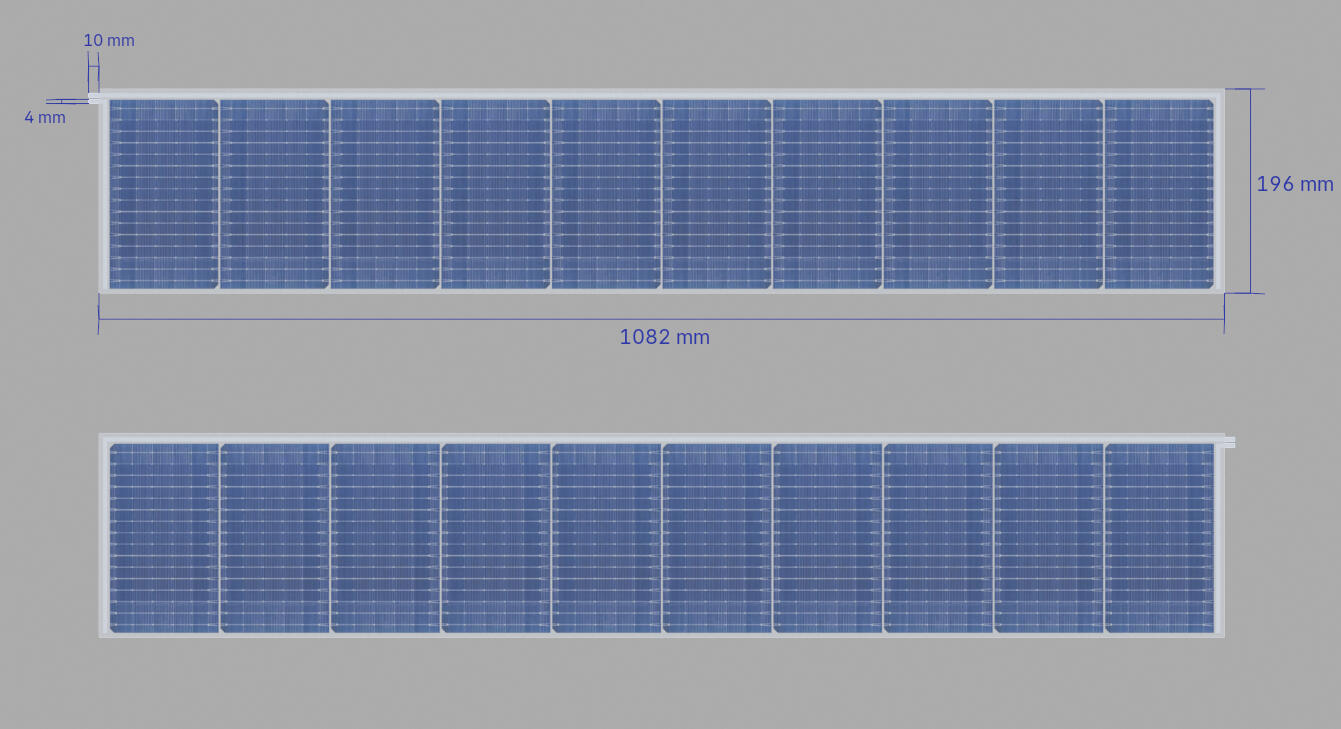

| Length | mm | 1082 | ±2 |
| Width | mm | 196 | ±2 |
| Thickness | mm | 1.8 | ±0,2 |
| Minimum Radius of Curvature | mm | 200 | n.a. |
Get in Contact
Interested? Request your samples or more info now.
Custom-fit WingPV Laminates
Tell us about your winged aviation application and operating conditions – we’ll propose a custom solar powered solution tailored to your needs.
Evaluation PV laminate samples available. Request price and lead time.
About
WingPV provides advanced solar solutions that turn wings into power sources. Our lightweight, aerodynamic laminates are tailored to your platform and mission profile for maximum efficiency and endurance.
WingPV – custom solar power for wings. Lightweight. Efficient. Mission-ready.
